Extrusion Punching
We accelerate your production with our rotary die-cutting machine.
Highlights
High speed
Up to 50 m/min processing speed
High precision and reliability
With high-precision tooling and a maintenance-friendly design
Compact and quiet
Driven by a servo motor system
User-friendly operation
Easy tool changes and operation via touch panel
Rotary Punching Machine
The RS 150
We accelerate your production with our rotary die-cutting machine. Speed and energy efficiency are critical factors in plastics processing, placing ever higher demands on all components of the extrusion line. The rotary die-cutter, originally developed by Märdian and now manufactured, further developed, and distributed by us, meets these requirements. The RS 150 operates with high precision and reliability at a maximum speed of 50 m/min, with a drive power of only 1.4 kW. Almost any material can be processed: plastics, rubber, cardboard, films, leather, and textiles, up to a material thickness of 3 mm. Our proven rotary die-cutting machine can be easily integrated into any extrusion line. It features a compact design, exceptionally quiet operation, easy handling, and is almost maintenance-free.
Your point of contact
Felix Weber
Tel. +49 6341-94246-14
Technical Features
-
Hinged safety cover with protective device – available in perforated sheet or acrylic glass
-
Smooth-operating handwheel for precise alignment of cutting wheels
-
Optional custom paint finish on request
-
Control cabinet mounted at the rear of the machine
-
Increased punching force with optional 3 kW drive
-
Transport frame for safe and easy handling of the RS 150
-
Easy integration into existing production lines
-
Can be used as a standalone machine (offline operation)
-
Automatic adjustment of extrusion speed
-
Precise and fast: up to 50 m/min
-
Low drive power: 1.4 kW for standard drive
-
Energy-efficient operation
-
Easy tool changes
-
User-friendly operation
-
Low noise: < 65–78 dB(A) at 1 m distance
-
Low maintenance
Technical Data
Dimensions (L × W × H): 764 × 770 × 1,734 mm
Weight: approx. 350 kg
Maximum extrusion speed: 50 m/min
Minimum extrusion height: 1,100 mm ± 100 mm
Drive power: 1.4 kW (standard) / 3 kW (optional)
Power supply: 400 V / 16 A
Options:
- Output signals for operating external processing modules
- Program extension for punching variable hole spacings
- Fault indicator light
- Machine base frame
- Auxiliary extraction system
- Dust extraction flange
- Set of lift rolls
- Set of swivel castors
- Guide rails and sliders for collection box
RS 150 Accessories
Machine base frame
Machine base frame with guide rails, allowing the machine to be slid out of the extrusion line.

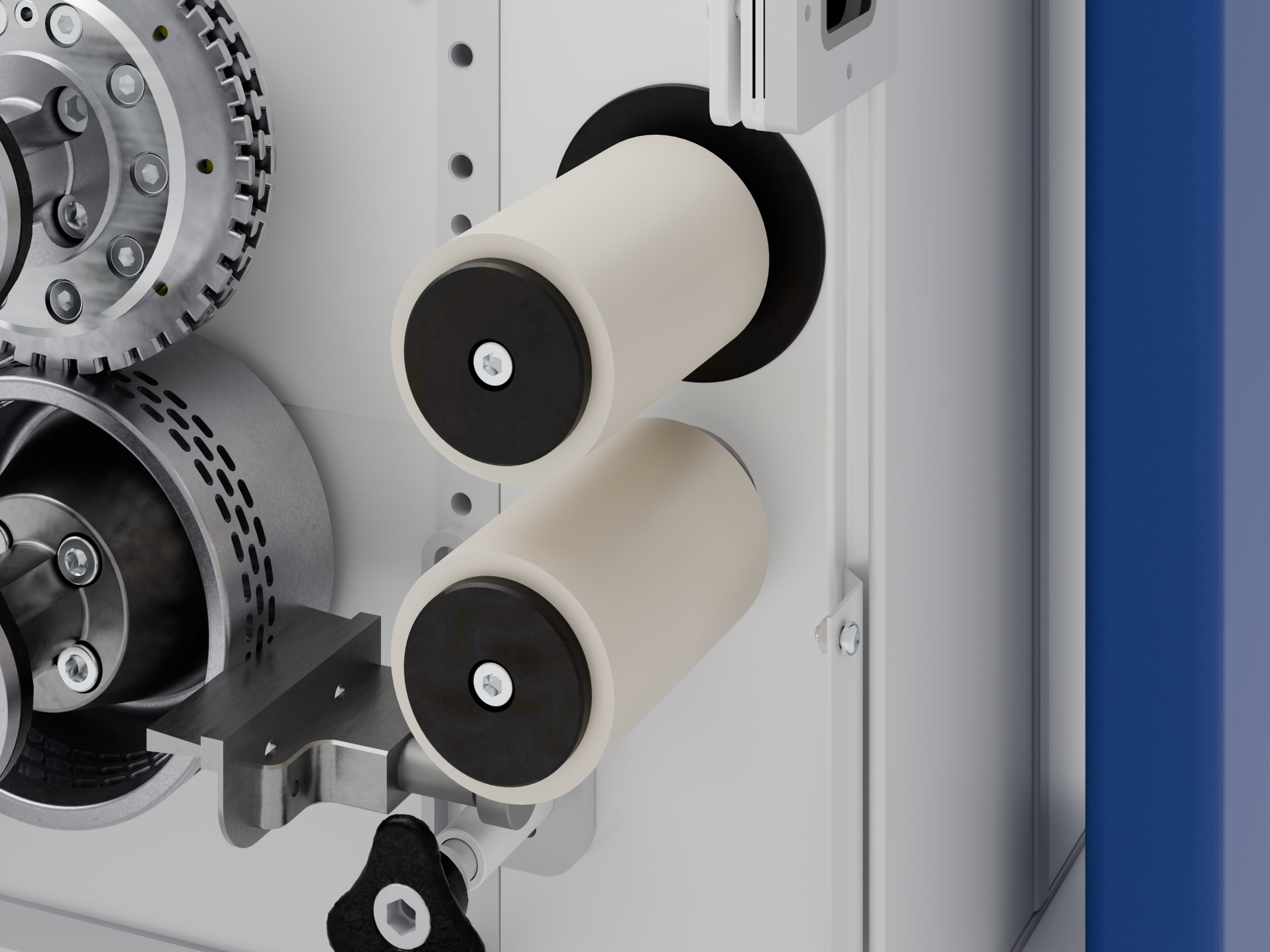

Assisted retraction right or left
For supporting the removal of the profile during the punching/perforation process.
Extraction flange
For connection to an internal extraction system, for example, to return recyclate to the process.
Set of lift rolls
Allows easy lifting and secure locking of the machine. Short operating stroke with a large lift. Easily operated via an actuating lever.
Set of swivel castors
For easy positioning of the machine in the production line.
Slider/Collection box
Mounting for collection container and stop gate.
